XLLV-Z Level Switch
隐藏域元素占位
- Advantages
- Parameter

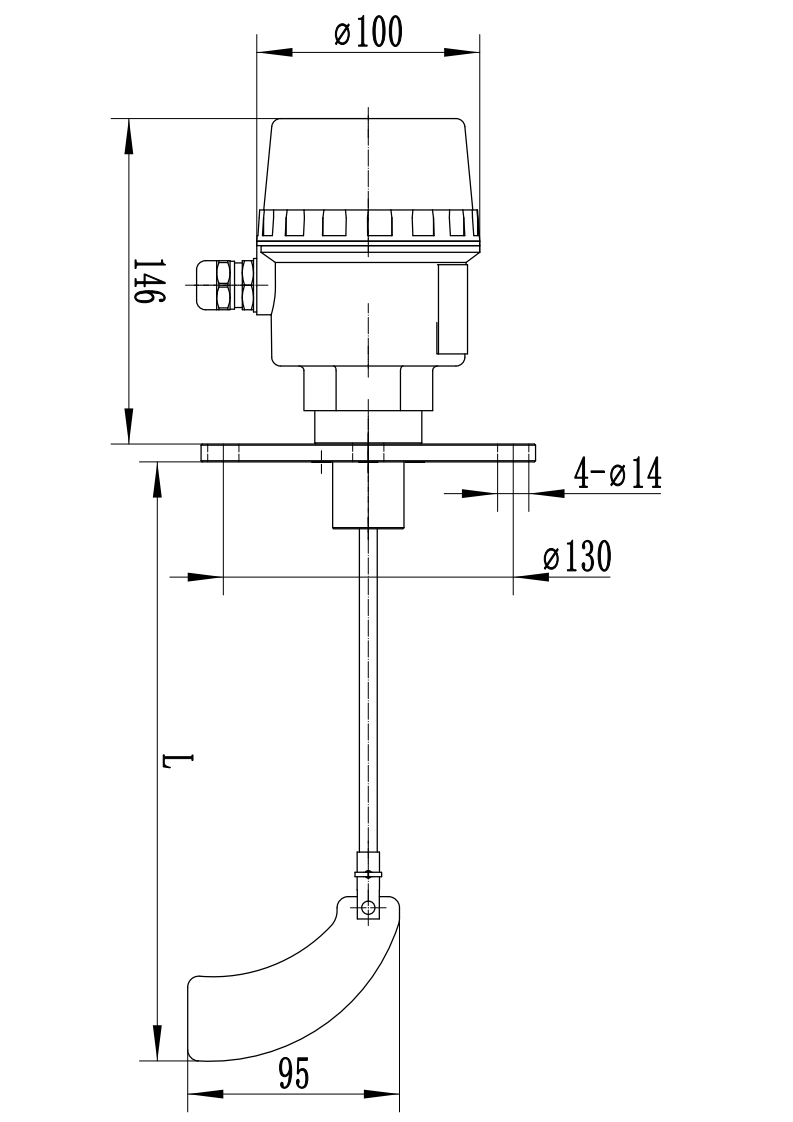

- Dimensions
-
● All-in-one sealed design, dust-proof, waterproof and condensation-proof.
● Unique oil seal design prevents dust from penetrating along the axis.
● Stable and reliable torque.
● Lightweight and easy to install.
● The blade bears excessive load, and the rotating mechanism of the motor slips automatically to protect it from damage.
-
● Ambient temperature：-40℃~50℃
● Relative humidity：0~95%
● Atmospheric pressure：80~110kPa
● Contact mode and quantity：1XSPDT
● Working voltage：AC220V
● Contact capacity：AC220V 3A，DC24V 3A
● Blade speed：1r/min
● Measuring torque：0.5～1.0 kg.cm
● Protection level：IP65
-
