XLLV-Q Level Switch


隐藏域元素占位
- Advantages
- Parameter

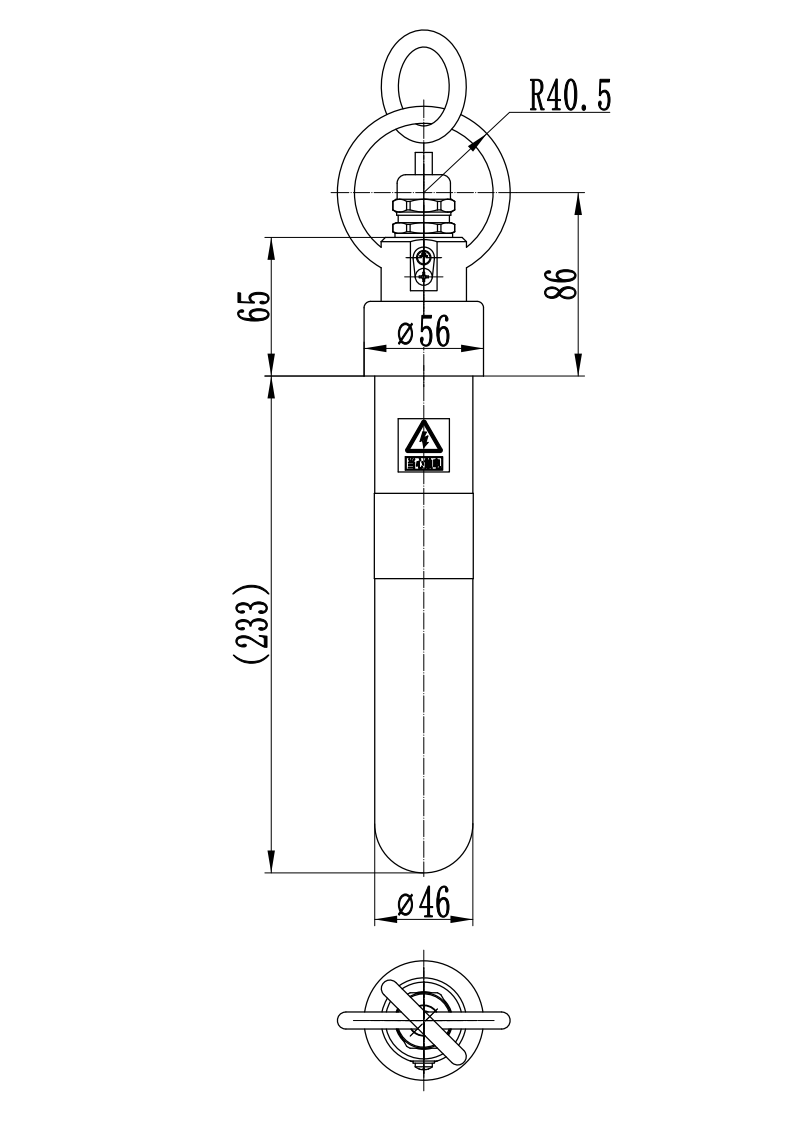

- Dimensions
-
● All-in-one sealed design, dust-proof, waterproof and condensation-proof.
● Shell steel structure, impact resistance.
● Universal contact, not restricted by direction.
● Normally open contact output.
-
● Ambient temperature:-40℃ - 50℃
● Relative humidity:0 - 95%
● Atmospheric pressure:80 - 110kPa
● Contact mode and quantity:Normally open contact output
● Contact capacity:AC220V 3A,DC24V 3A
● Installation location:Only the highest material position can be detected
● Action angle:25°~35°
● Reset mode:Automatic
● Protection level:IP65
-
