XLXQ-1 Rotary Brush Type Belt Cleaner

XLXQ-1 Rotary Brush Type Belt Cleaner

1
1 / 1
Advantages
Parameter

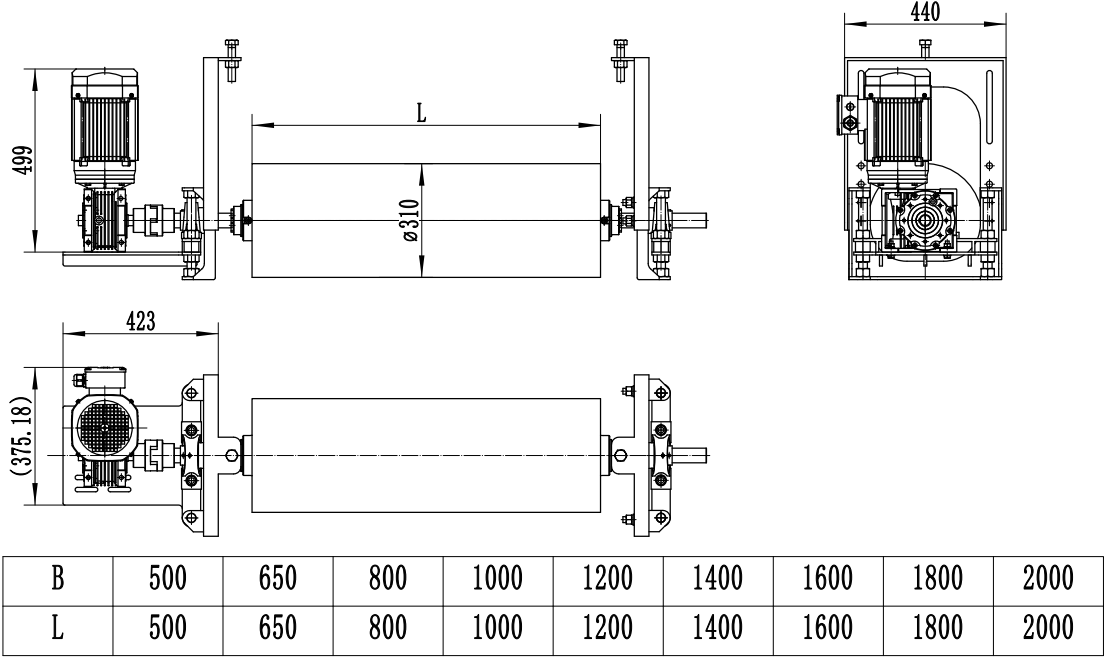

Dimensions

● Easy installation and adjustment, strong applicability.

● No abrasion to the tape, prolong the service life of the tape.

● No tape deviation during cleaning.

● Safety and reliability, long service life and low maintenance cost.

● When the sweeper is working, the sweeping point contacts continuously, and the sweeping is powerful and the sweeping effect is good.

● Brush wire is made by special process, without sticking and scaling.

● It is also suitable for strip steel clip tapes with unsatisfactory vulcanization bonding and patterns.

We could not find any corresponding parameters, please add them to the properties table

● Ambient temperature:-20℃~60℃

● Relative humidity:0~95%

● Atmospheric pressure:80~110kPa

● Working voltage:380V AC ±10%

● Power:2.2kw

● Output Speed:132r/min

● Transmission ratio:10.78i

● Output Torque:128Nm

● Lubricating oil:L-CKDHeavy duty industrial gear oil
