XLLL-B Material Flow Detector

1
1 / 1
Advantages
Parameter

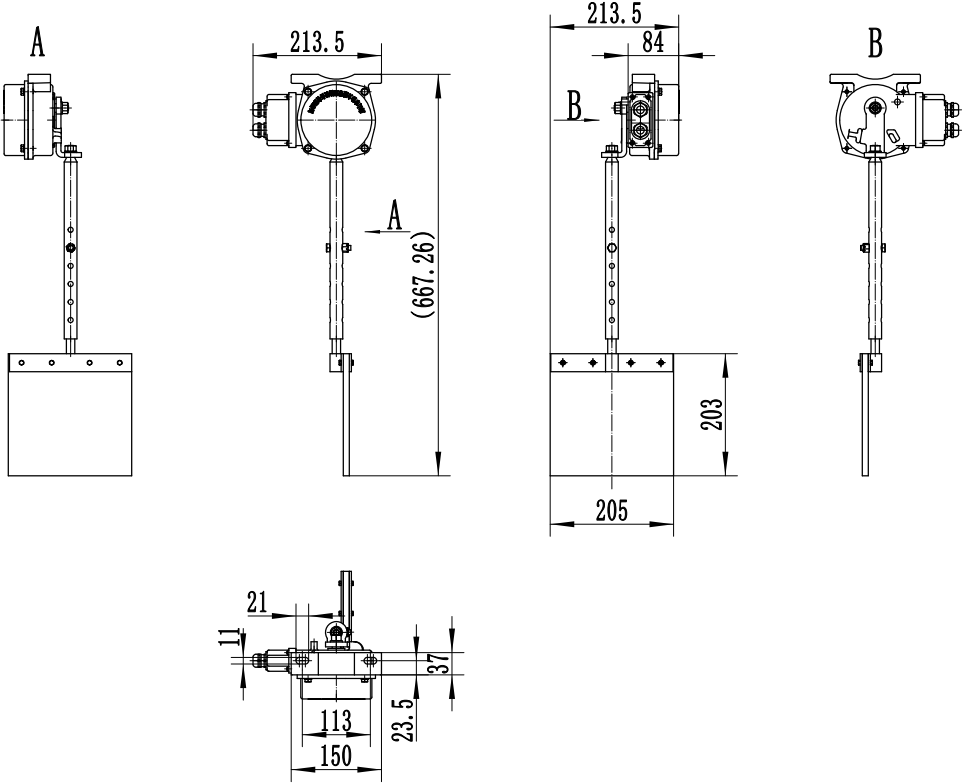

Dimensions

● Adoption of high-strength A-alloy precise die-casting shell, with strong impact resistant capability.

● High protective degree of shell, good sealing property, dust prevention water prevention and condensation prevention.

● Large contact capacity, sensitive action and reliable performance.

● With waterproof wiring chamber, reliable wiring.

We could not find any corresponding parameters, please add them to the properties table

● Ambient temperature：-40℃~50℃

● Relative humidity：0~95%

● Atmospheric pressure：80~110kPa

● Output mode and quantity：2×SPDT

● Contact capacity：AC380V 5A  DC24V 5A

● Initial position：The contact plate is perpendicular to the conveyor belt surface

● Action angle：20°±2°

● Limit angle：75°

● Adjustment range of contact plate：0~150mm

● Reset mode：Automatic

● Protection level IP65
